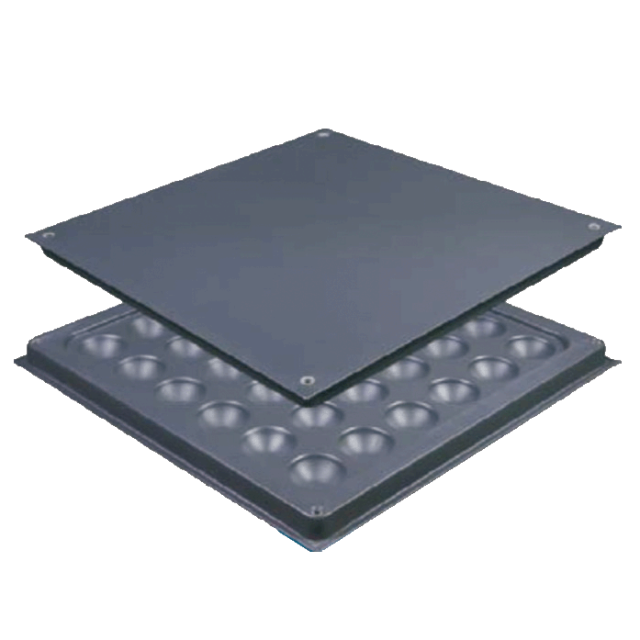

JS501
Panel size: 500mm x 500mm
Finishes: Bare
All-steel Structure,nice loading capacity
Excellent fire resistance ability
Goood dimension accuracy, panel can be interchangeable
Coated with epoxy paint and infilled with light cement.
Linfloor 架空地板系统

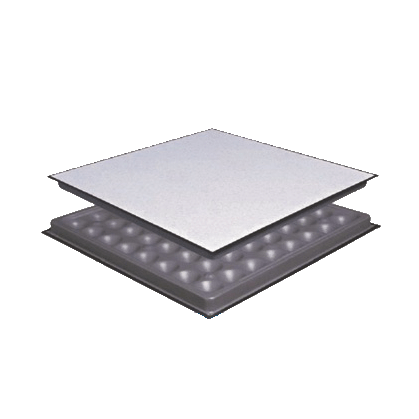

JS600
Panel Size : 600mm x 600mm
Finishes : HPL/PVC/Aniti-Static PVC
Designed for Data Center application,
HPL / PVC / Aniti-Static PVC sheets could be factory-bonded on access floor panels,
Perforated panel airflow rate 20%~ 40%, dampers optional,
Steel pedestals provide excellent impact load performance,
Vibration proof locking nut for fast and stable installation,
Rectangular stringer provides excellent loading performance.
JS601
Panel Size: 600mm x 600mm
Finishes : Bare
With none-combustible concrete-and-steel composite panel and under-structure, JS601 Series is the strongest, most durable access floor in the world, and is widely used in Office Building, Data Center, Renovation, and Underfloor Air Distribution applications.

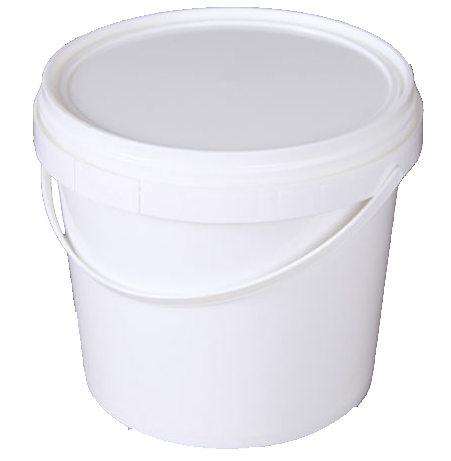

AD 28 Pedestal Adhesive
l Solvent and isocyanate free, 100% solids
l Non-silicone
l Extremely low shrinkage
l Fast curing – typically 7-14 days
l Permanently elastic in a broad temperature
l Low odor
l Primer-less adhesion to most surfaces
l Non-flammable
Description:
AD-28 was designed as a one-component multi-purpose adhesive for interior applications or applications not subject to UV light. AD-28 is used
extensively for pedestal attachment (galvanized steel to concrete) in the Access Flooring system. This high-performance adhesive provides superior
adhesion and flexibility for seismic zones. Load calculations using AD-28 may provide one or all of the following cost saving options; the ability to use
smaller pedestal bases, avoid the use of mechanical fasteners, the application of less adhesive.
Packing:
l Portable Pack: 4Litre per 1 set
l Industrial Pack: 20Litre per 1 set
Physical Properties
Approximate Performance Properties
Basic Material:
Proprietary Polymer After 7 days ambient cure
Consistency: Paste
Shear Strength: 200 psi
Color: Natural
Tensile Strength: 160 psi
VOC’s: 17g/L
Elongation at Break: 175%
Type: Elastomeric
Hardness Shore A45
Solvent: 0%
Slump (Sag) Zero Slump
Isocyanate: 0%
Flame Spread/Smoke: 0 Flame/ 0 Smoke
Specific Gravity: 1.6
Stain Testing: No staining
Shelf Life: 0 months in unopened containers stored between 60ºFand 80º F.
Low Temperature Flex -20ºF
Packing: 4 Liter & 20 Liter
Service Temperature: -40ºF to 200º F, temporarily resistant to 390ºF
WC600
Modular system made of chipboard, composed of woodcore particles bound together by heathardener resins and obtained with a continuous process of thermo-pressing so as to guarantee high homogeneity of mechanical characteristics and dimensional stability, and is widely used in Office Building, Data Center, Renovation, and Underfloor Air Distribution applications.
WC600 Panel + Rigid Grid System
Finishes : Bare / HPL / PVC / Aniti-Static PVC
Dimension: 600mm x 600mm
Perforated panel airflow rate 40%, dampers optional,
Steel pedestals provide excellent impact load performance,
Vibration proof locking nut for fast and stable installation,
Steel stringer provides excellent loading performance.

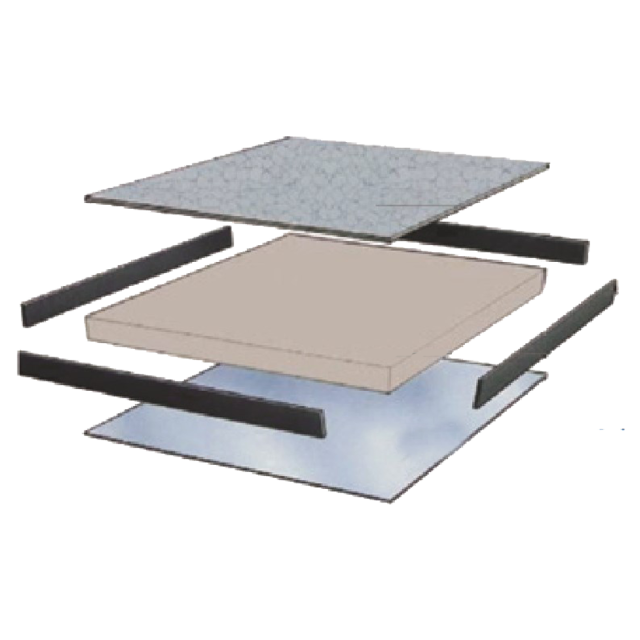

SC600
SC600 Series is modular system made of homogeneous high density calcium sulphate constituted of gypsum and vegetable organic fibres, with high physical-mechanical performance, excellent fire-resistance and high levels of sound-proofing. suitable for working and executive environments, and is widely used in Office Building, Data Center, Renovation, and Underfloor Air Distribution applications.
Calcium Sulphate Panel + Rigid Grid System
Finishes : Bare / HPL / PVC / Aniti-Static PVC
Dimension: 600mm x 600mm
Perforated panel airflow rate 40%, dampers optional,
Steel pedestals provide excellent impact load performance,
Vibration proof locking nut for fast and stable installation,
Steel stringer provides excellent loading performance.
